Argo/UML Tour:
Overview of Major Features

This tour consists of 18 screens, each of which is described in a section of this page:
(The screenshots in this tour were made with Argo/UML v0.5.1)

• 01. Splash Screen
• 02. Blank Deisgn
• 03. Adding Classes
• 04. Naming Classes
• 05. Direct Text Editing
• 06. Class Properties
• 07. Association Properties
• 08. First "To Do" Item
• 09. Adding An Operation
• 10. Operation Properties
• 11. Operation Checklist
• 12. A Java-specific "To Do" Item
• 13. Class Source Code
• 14. Inheritance-centric Perspective
• 15. Dismissing a "To Do" Item
• 16. Design History
• 17. Customizing a Perspective
• 18. Modified Perspective w/ Javadocs

Back to Argo/UML Tours
Back to Argo/UML Home

This is what users see while Argo/UML loads.

The tool starts with an empty design document.

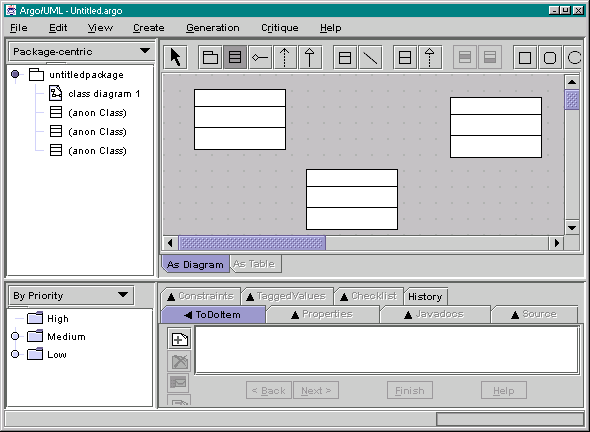

Classes can be added to the untitled diagram by clicking on the class icon in the toolbar.
Double clicking on a toolbar button "locks" that tool untill the arrow tool is selected.
The yellow sticky notes and wavy, red underlines indicate incomplete or problematic parts of the design.
Placing the mouse over a sticky note or wavy line will display a blue tool-tip that briefly describes the problem.

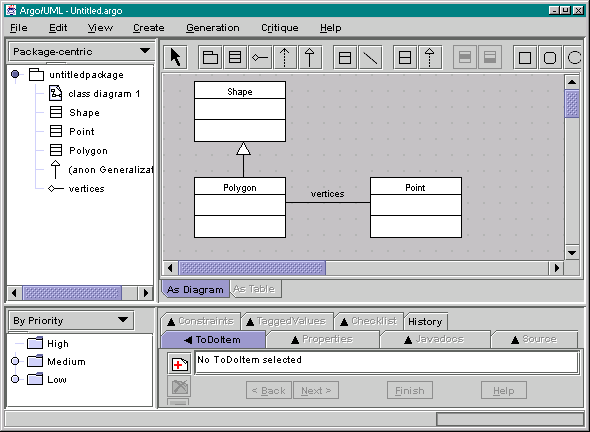

The user can set the name of a class or association by simply selecting it and typing.

Double clicking on a name allows the name to be edited. You can double click on the other compartments of the class to edit them.

The "Properties" tab int the details pane shows details of the selected model element.

Asssociations also have properties.

Argo/UML contains design critics that continuously analyze the design and produce "to do" items that point out problems and incompleteness.
When a "to do" item is selected, the "offending" element of the design is highlighted in red and a brief description is shown in the details pane.

The user decides to follow this critic's advice and add an operation via a toolbar button.

When a model element is selected in the navigation pane, its details are shown in the "Properties" tab.
Note that the criticism that class Shape has no operations has been automatically removed.

Design checklists are commonly used in review meetings to help catch design errors and prompt thinking.
Argo provides checklists that are specific to the selected model element.

This is an example of a critic with knowledge of limitations of the target language.

Source code for the selected model element is shown in the "Source" tab if appropriate. In the future, Argo/UML will parse what the
designer types here and update the model. This screenshot also shows Argo's ability to place unstructured graphics in diagrams.
Not shown: the designer can enter comments in JavaDoc format by using the "Javadocs" tab.

The navigator pane can show any one of several task-specific hierarchical views on the model. Each view is called a "navigational
perspective" and clarifies a certain kind of structure in the model. Here, inheritance is emphasized. Other navigational perspectives
emphasize associations, states, or transitions.

This critic reminds the designer to add instance variables to class Shape. The designer considers the advice but decides against following
the critic's advice, and clicks the "Resolve Item" icon to dismiss the item.

The "Dismiss Feedback Item" dialog prompts the designer to record an explanation for his or her decision. This explanation will be added
to the design history for later reference.

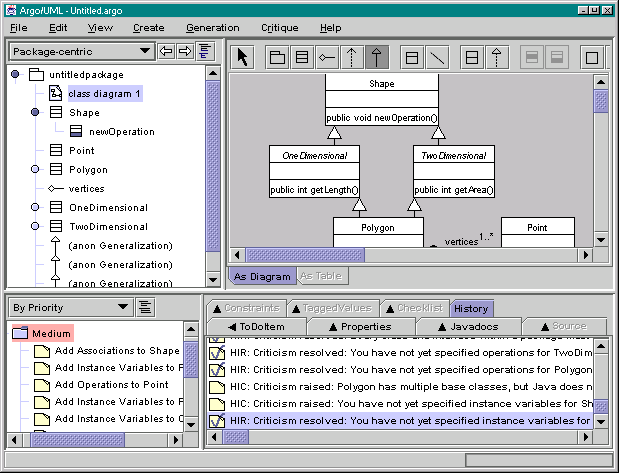

All criticisms and their resolutions are recorded in a design history for later review. In the future, Argo will also record design changes and
the causal relationships between changes and criticism being produced or withdrawn.

This dialog allows designers to customize or define new navigational perspectives. Each perspective is composed from a set of rules
that generate the children of each node in the tree. Here we see that the Inheritance-centric perspective will start at the project, packages
in a project will be shown, base classes in a package will be shown, and each class will show its subclasses. As an example, we have
added in a new rule that makes each class show its operations.

This is the result of modifying the Inheritance-centric perspective to also show operations by selecting rule "Class -> Operations".
Compare this to screenshot 14.
